Product Details
＋

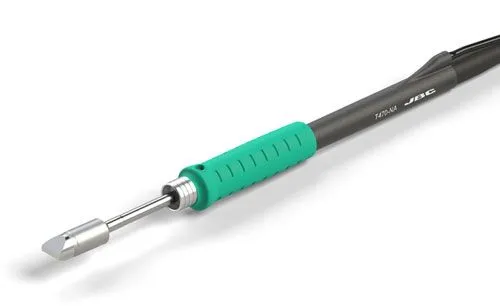

T470 Nitrogen Heavy Duty Handle allows you to create an inert atmosphere, removing the oxygen, and hence minimizing oxidization during solder joint formation.
- The result is a higher soldering quality with improved wetting and slightly better productivity. It also allows using milder fluxes.
- It is supplied with three different Nozzles, which transport the nitrogen to the tip and are suitable for the complete C470 Cartridge Range.
Handle Requires
- DNS Stand
- MNE Nitrogen Flow Regulator and its corresponding HDU Heavy Duty Control Unit.
- GN Nitrogen Generator Module if nitrogen supply is not available at customers workbench.
Product Includes
- (1) T470N Nitrogen HD Handle
- (1) B6194 Nozzle HD N2 for T470N Handle
- (1) B6195 Nozzle HD N3 for T470N Handle
- (1) B6193 Nozzle HD N1 for T470N Handle
Specifications
- ESD-Safe: Yes
- Cable Length: 1.5m
- Tool Weight: 0.09 kg. / 0.21 lb.
- Tool Dimensions: 145 x 17 x 17 mm / 5.71 x 0.67 x 0.67 in
- Package Weight: 0.17 kg. / 0.36 lb.
- Package Dimensions: 277 x 73 x 50 mm / 10.91 x 2.87 x 1.97 in
